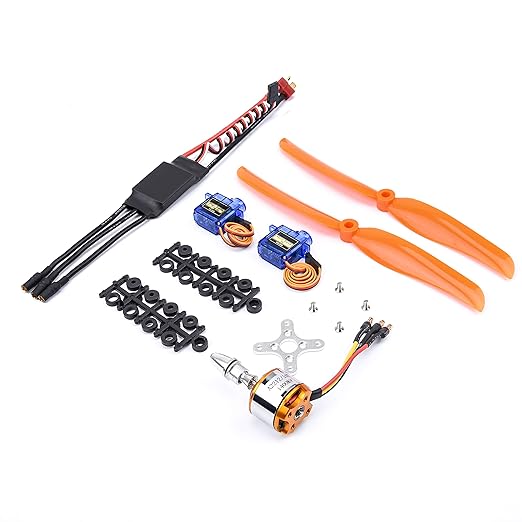

RC A2212 1400KV Brushless Motor+30A ESC+SG90 Servos+8060 Propeller for RC Plane Airplane

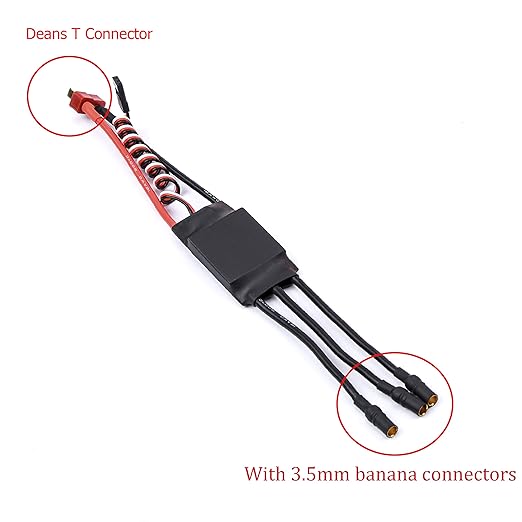

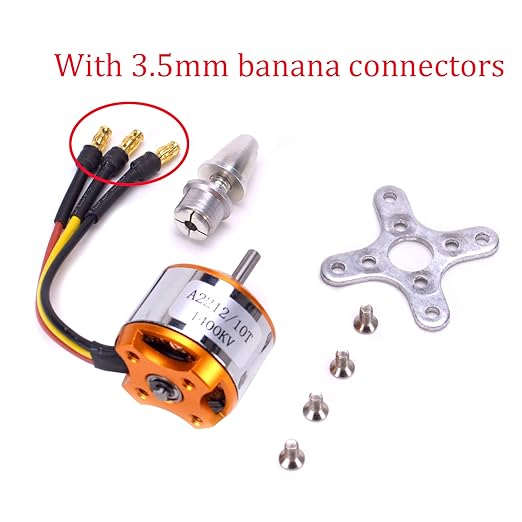

- 30A ESC BEC output: linear mode: 5V, 2A,Number of battery sections: 2-4S LiPo. - SG90 Servo, 4.8V-6V, 0.12 sec / 60 deg (4.8 V). - A2212 1400kv Brushless Outrunner Motor with connector, fit for Battery 2-3 Li-Poly. - With T plug and 3.5mm banana connectors,effectively avoid welding problems. - Suitable for RC Quadcopter Helicopter Aircraft Copter Multi-copter.

Product description

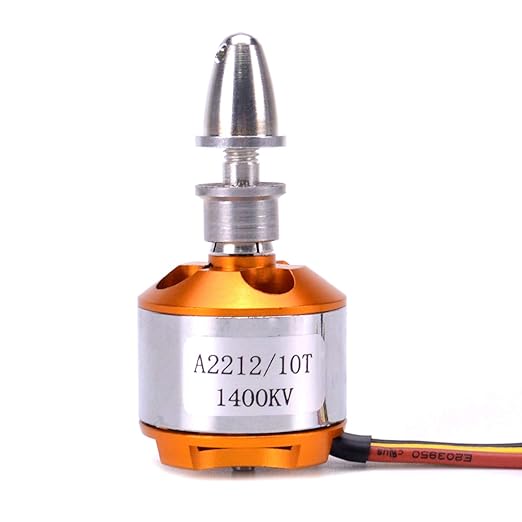

A2212 1400kv Motor Specification:

ESC Specification:

8060 propeller parameters:

SG90 9G servo parameters:

Package Included:

KV: 1400

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 47g

BEC : 5V/2A

Li-ion/Li0poly:2-4S

Weight: about 26.5g(with cable);

Model: 8060

Color: Orange

Weight: About 6g

Center Bore: 3mm

Size: 21.5mmX11.8mmX22.7mm

Weight: 9 grams

No load speed: 0.12 sec / 60 deg (4.8 V)

Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)

Operating temperature: -30~~+60 degrees Celsius

Dead zone setting: 5 microseconds

Working voltage: 4.8V-6V

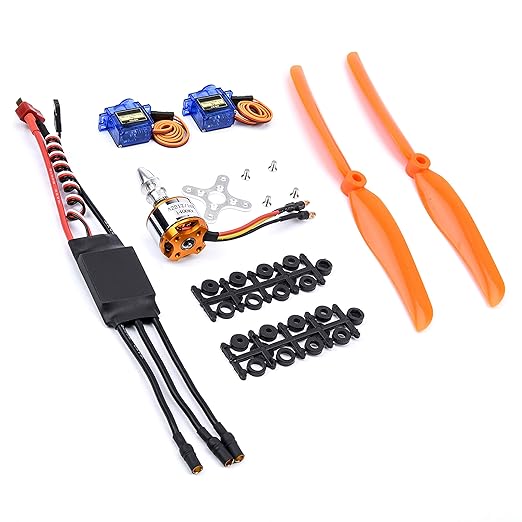

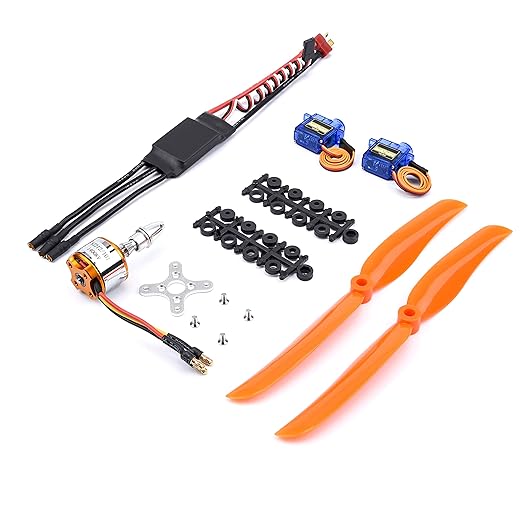

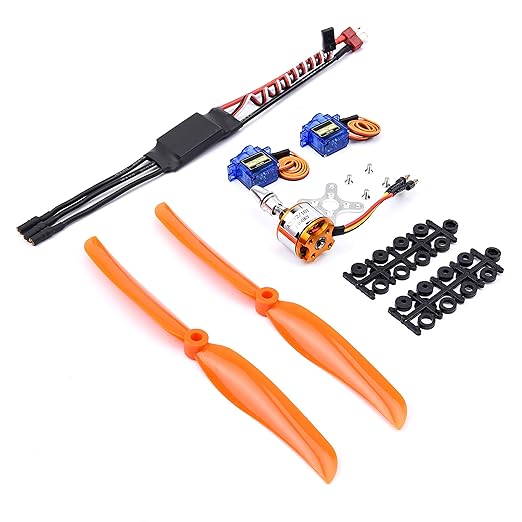

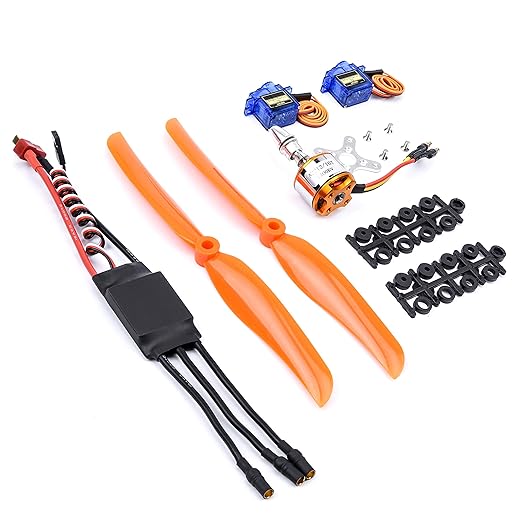

1 X A2212 1400kv Brushless Motor

1 X 30A Brushless ESC

2 X SG90 9G Servos

1pair 8060 Propellers
